QUADRIGA Schema - Diagrams

UML class diagrams approximating the schema entities and properties.

Overview

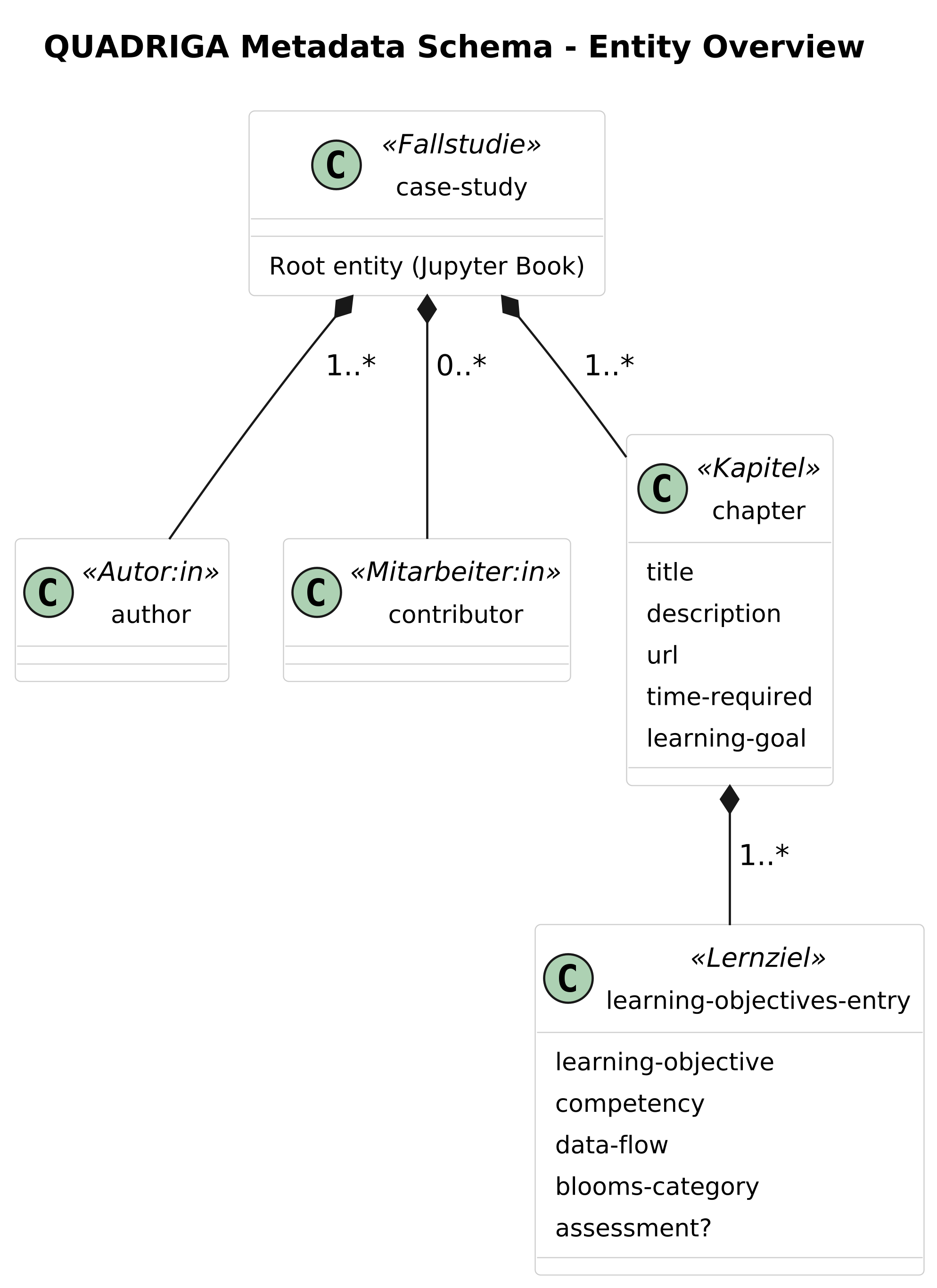

Entity overview diagram

OpenEducationalResource

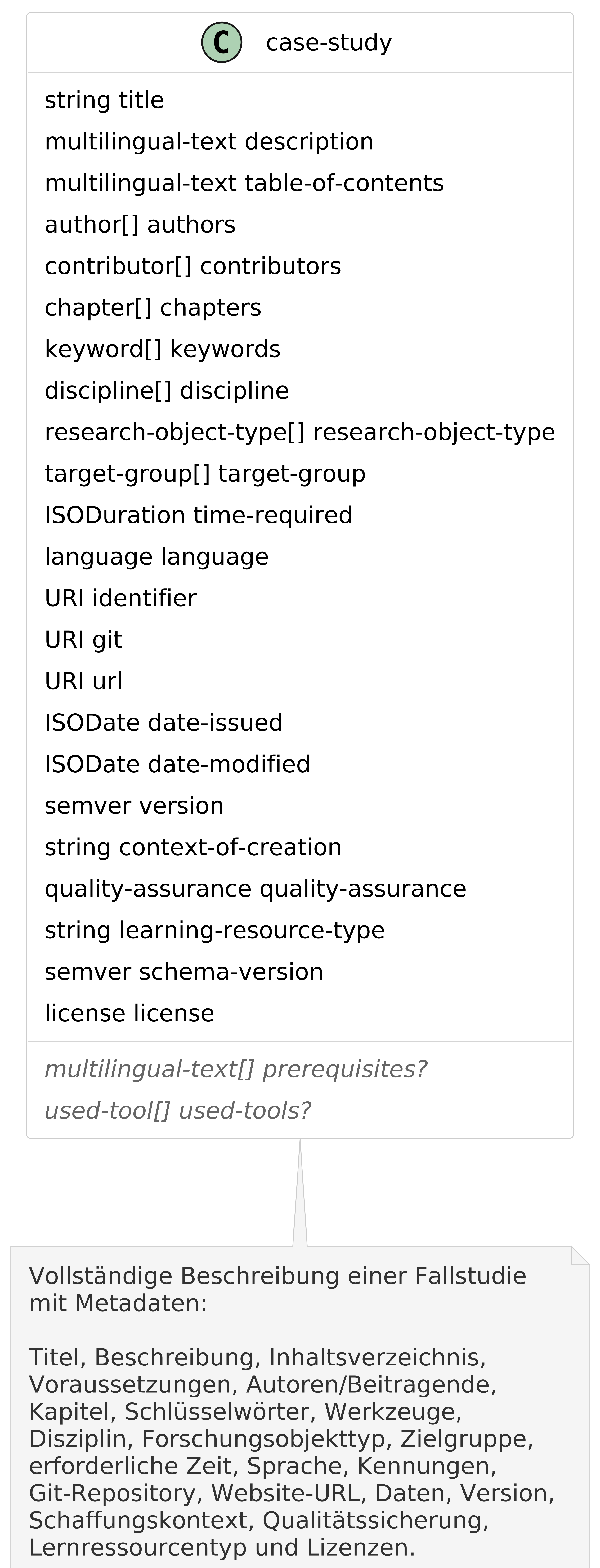

Open Educational Resource diagram

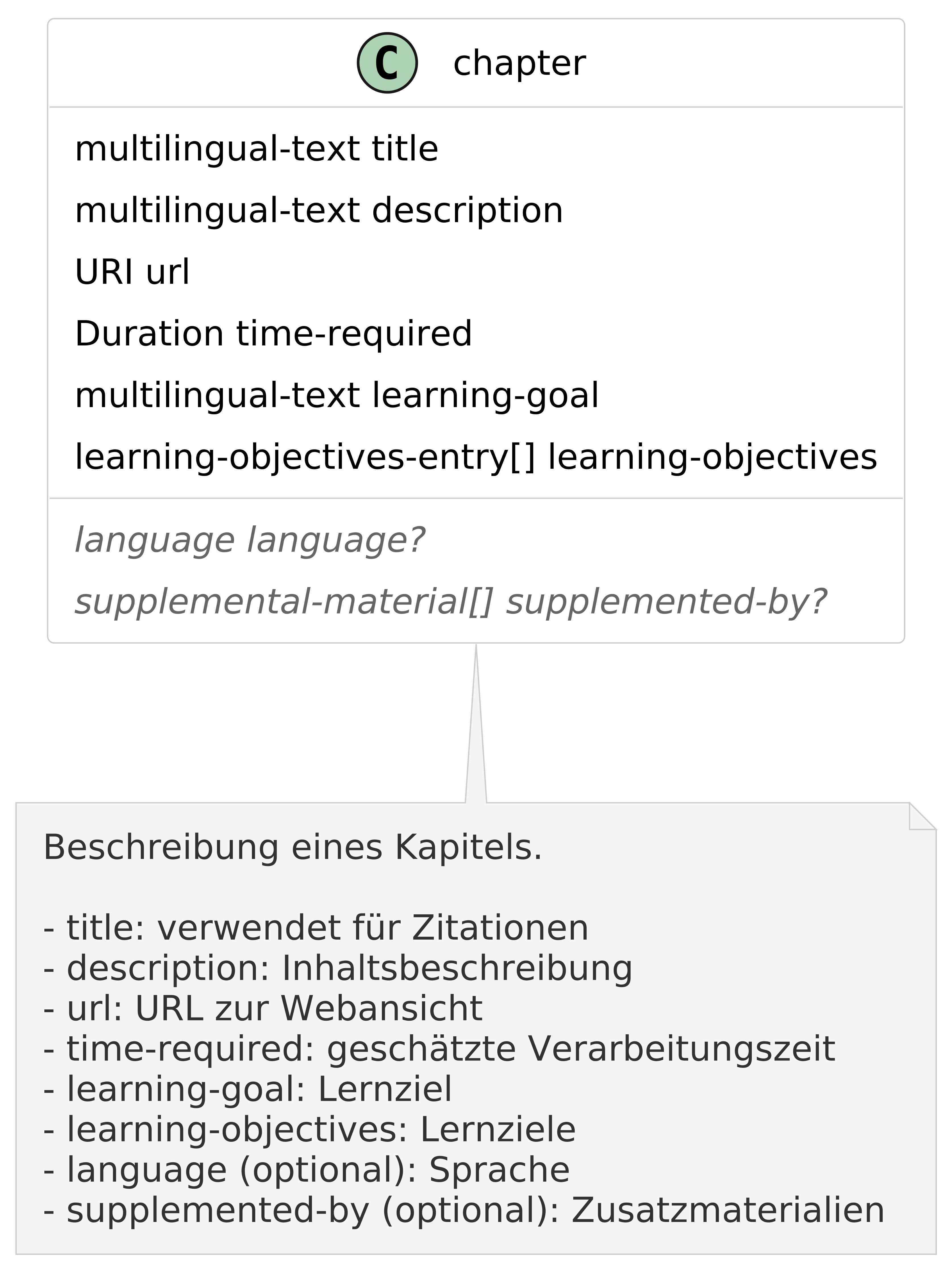

Chapter

Chapter diagram

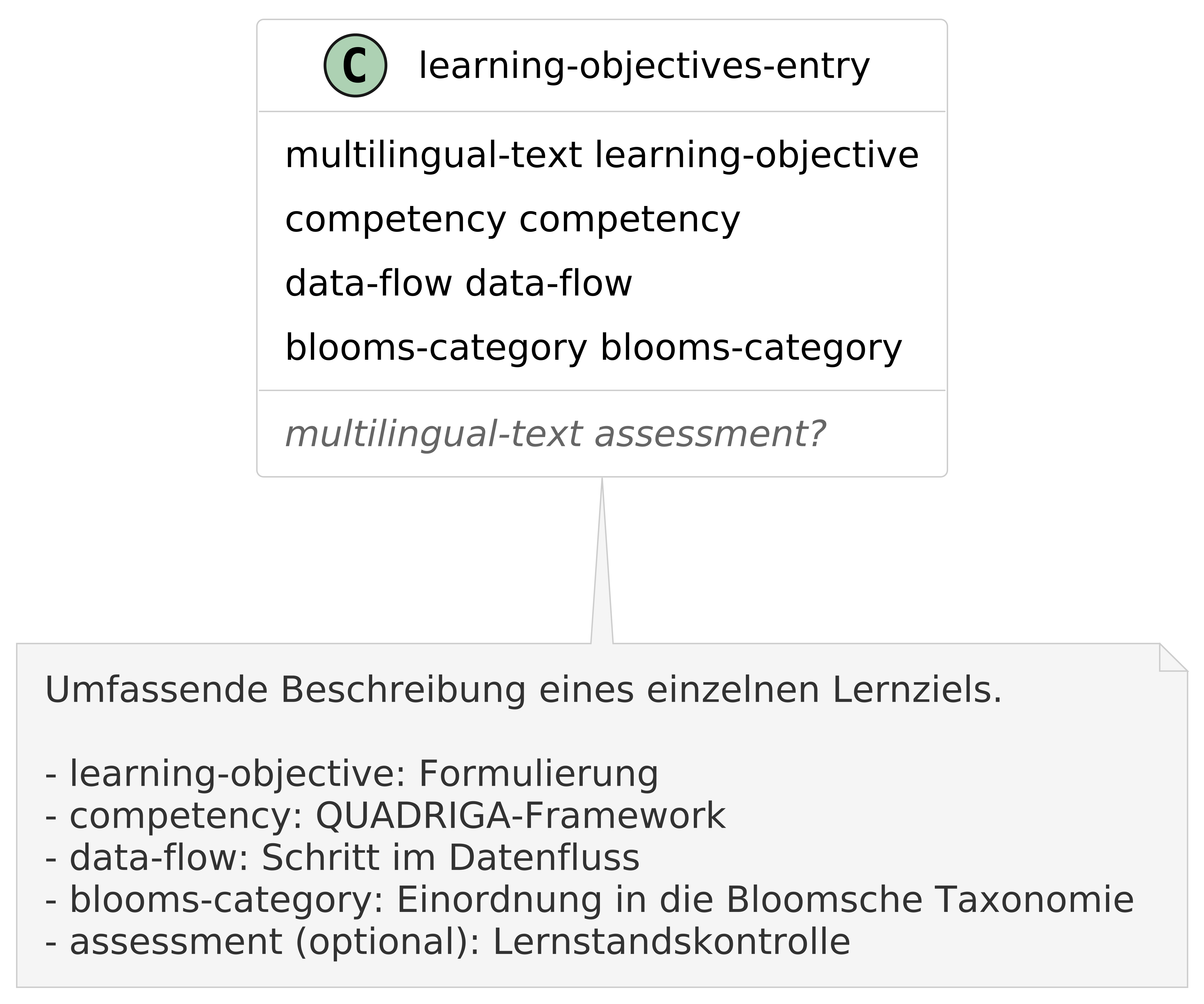

LearningObjective

Learning objective diagram

Literal values for describing a learning objective

Competency

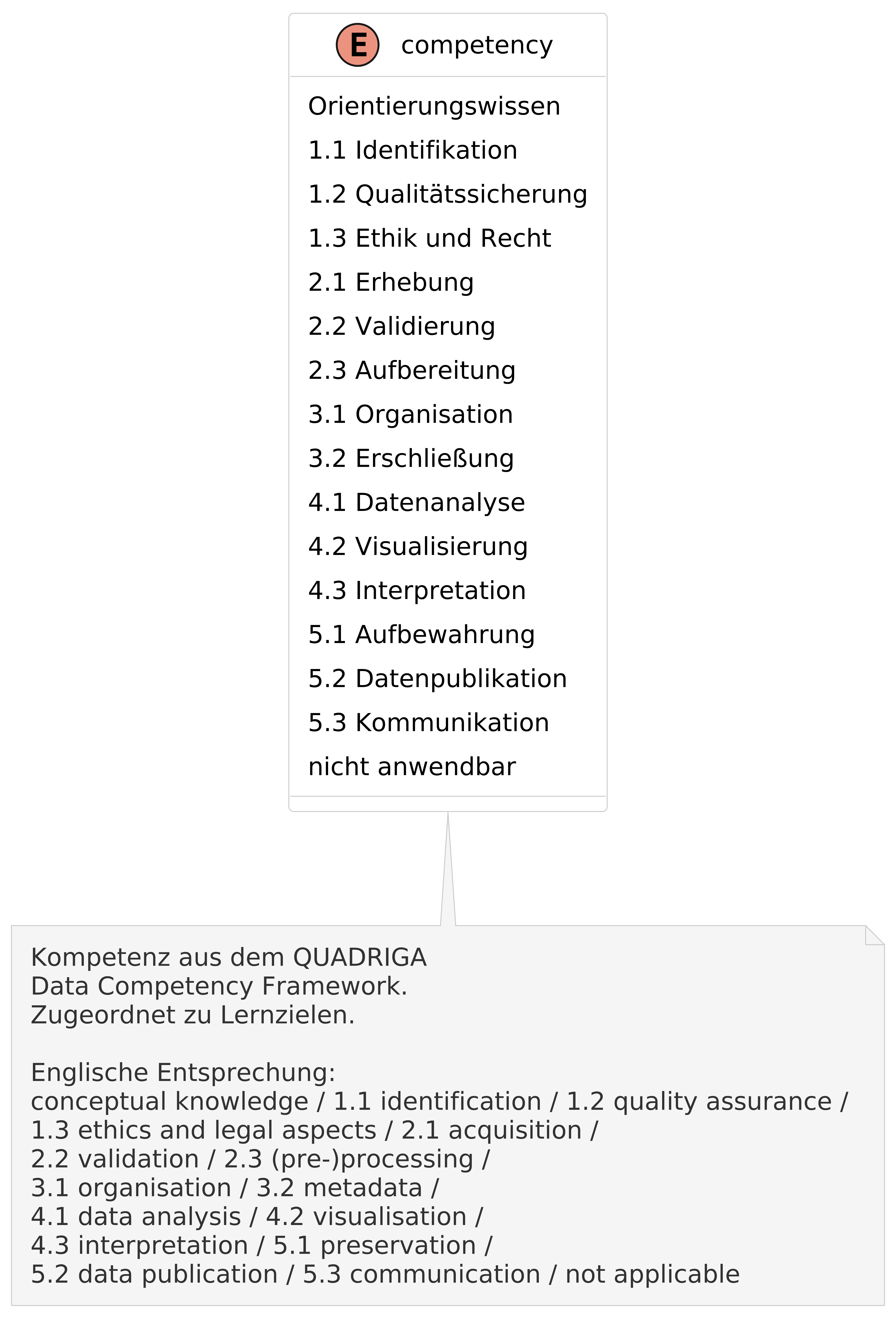

Competency diagram

BloomsCategory

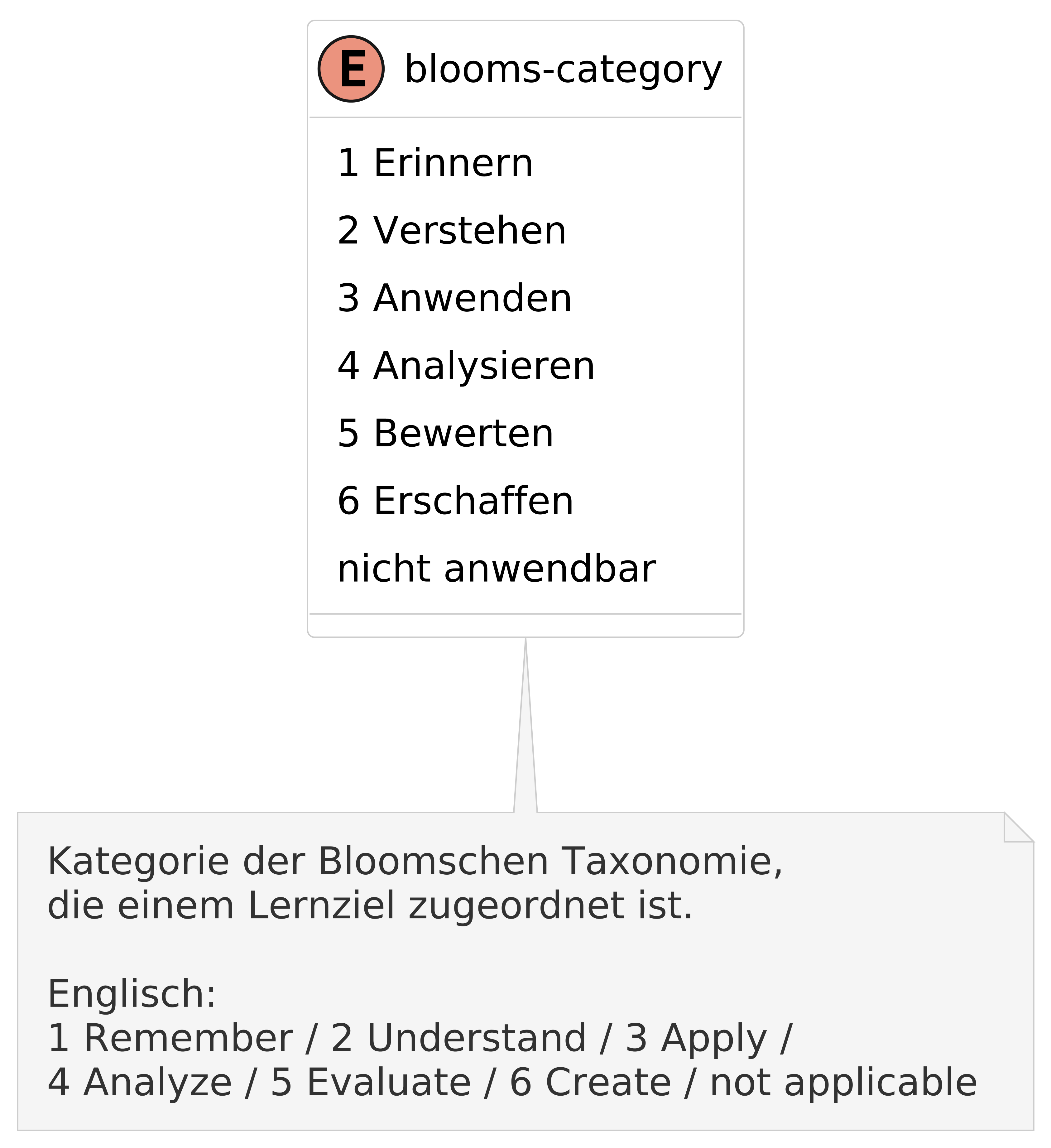

Blooms category diagram

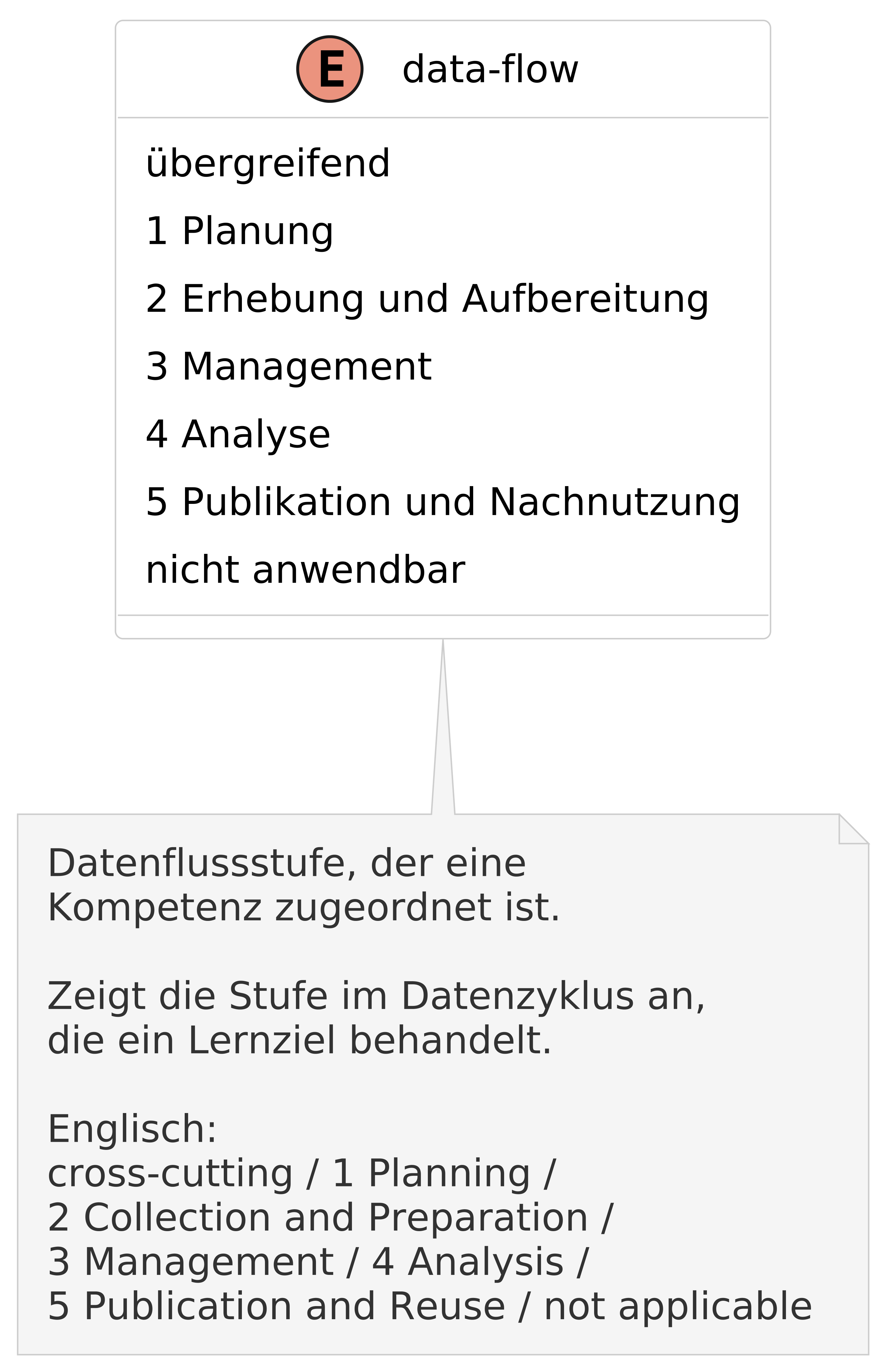

DataFlow

Data flow diagram

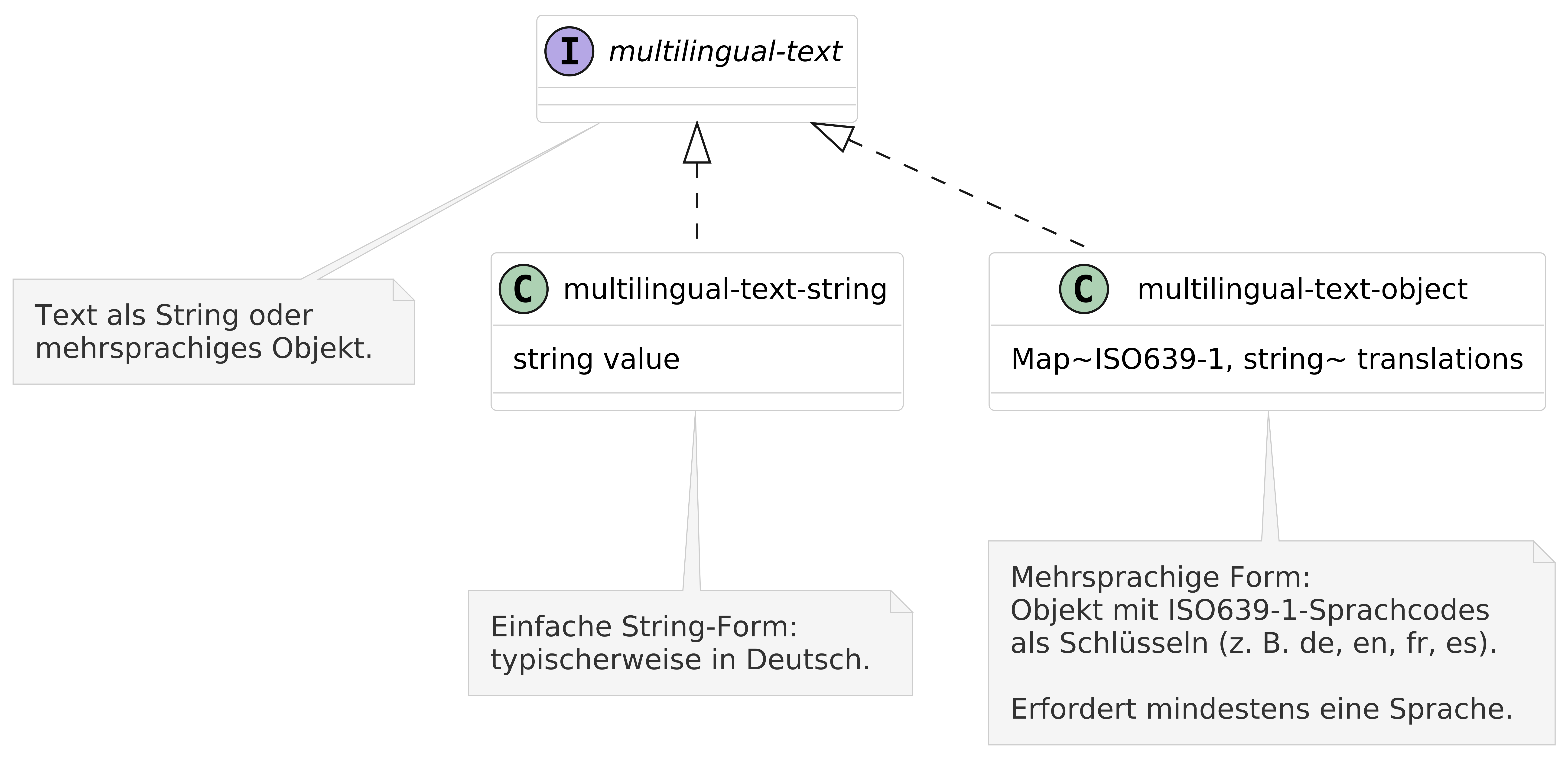

MultilingualText

Multilingual text diagram

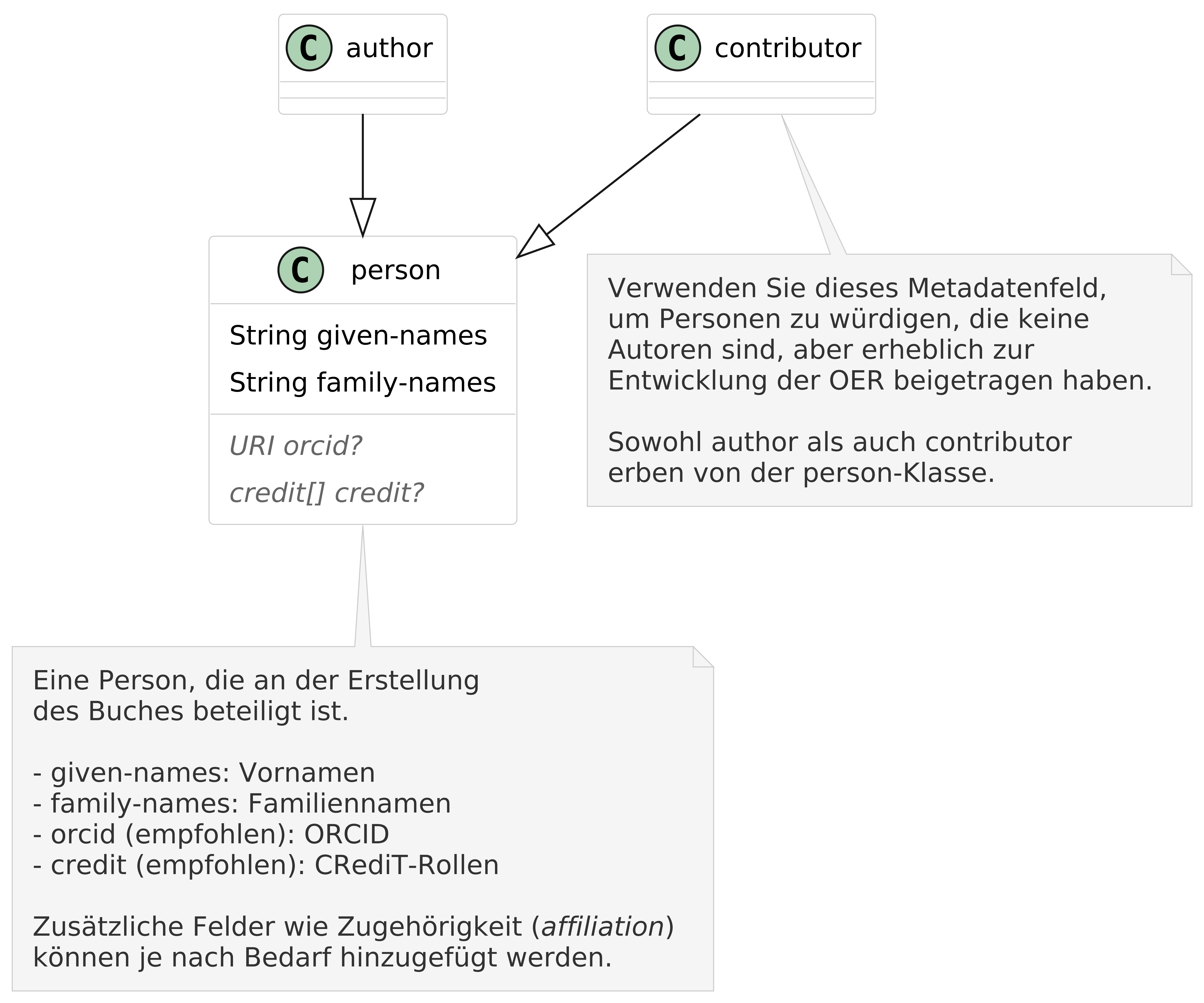

Other entities / properties

Keyword

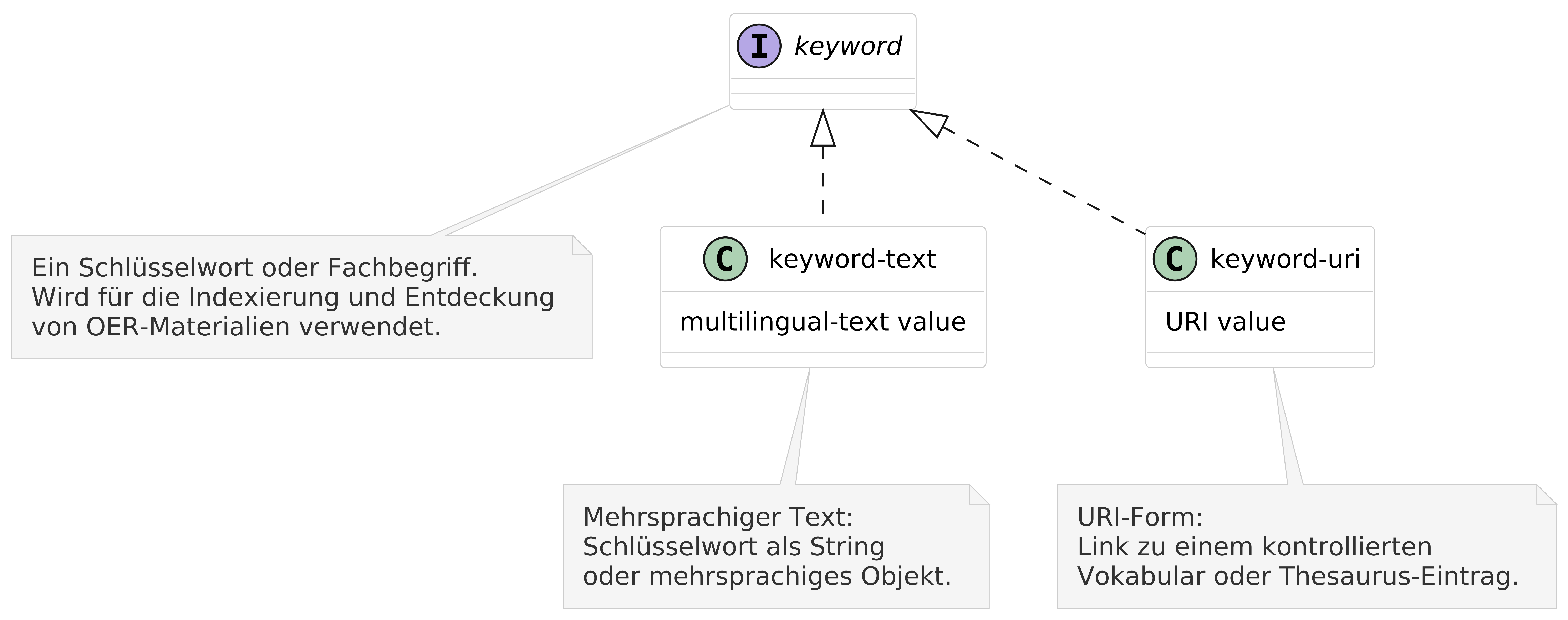

Keyword diagram

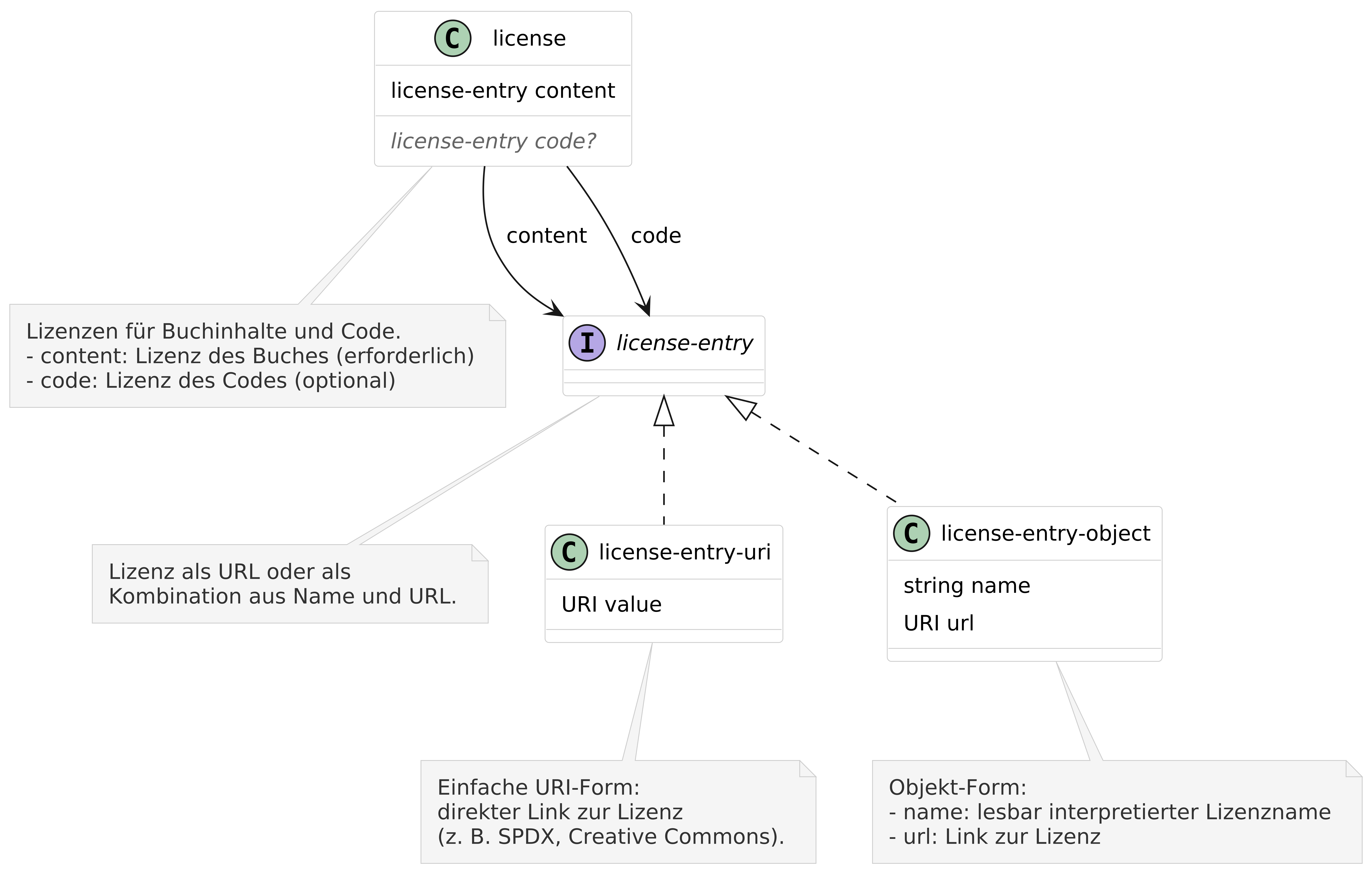

License

License diagram

QualityAssurance

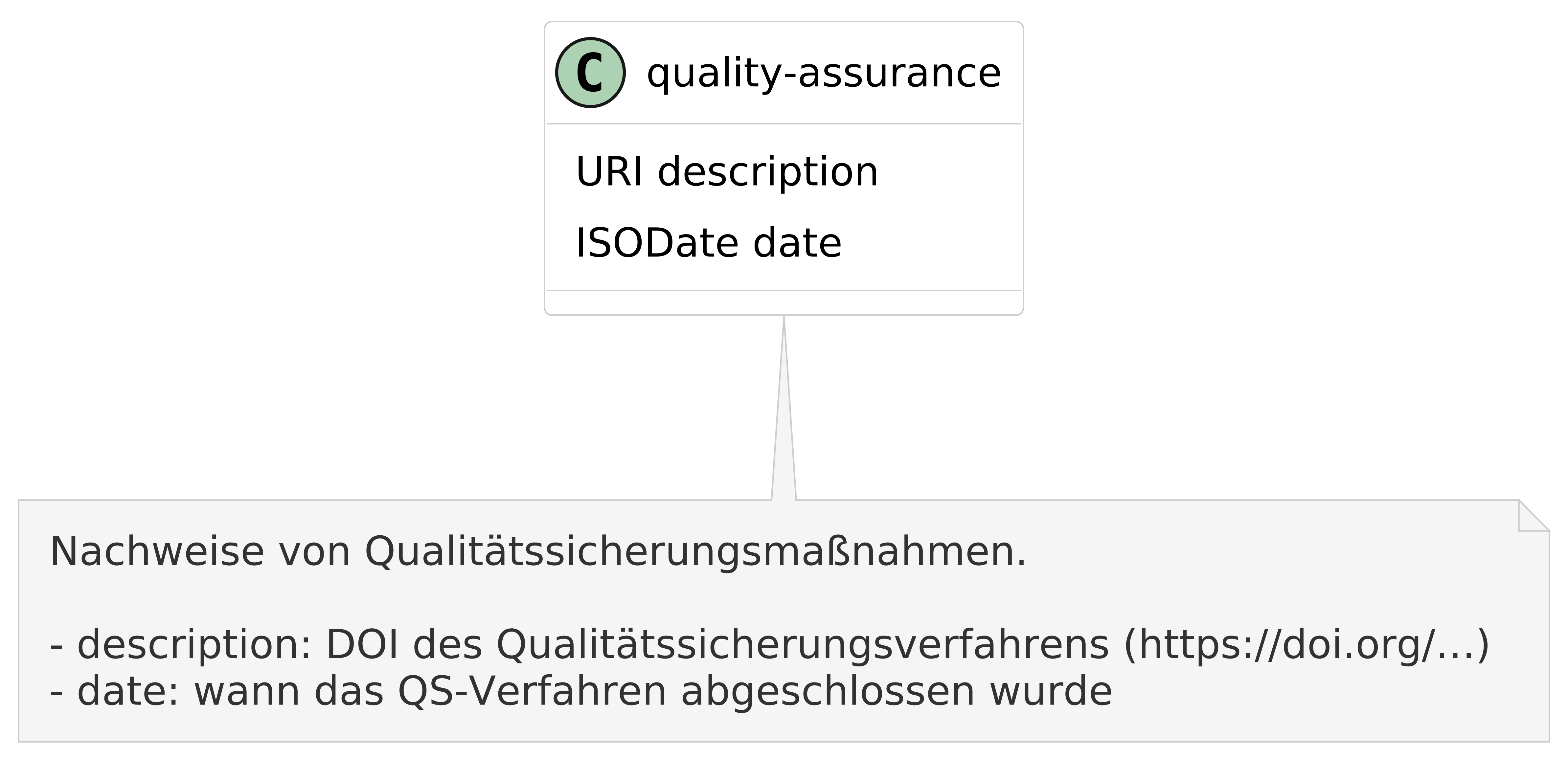

Quality assurance diagram

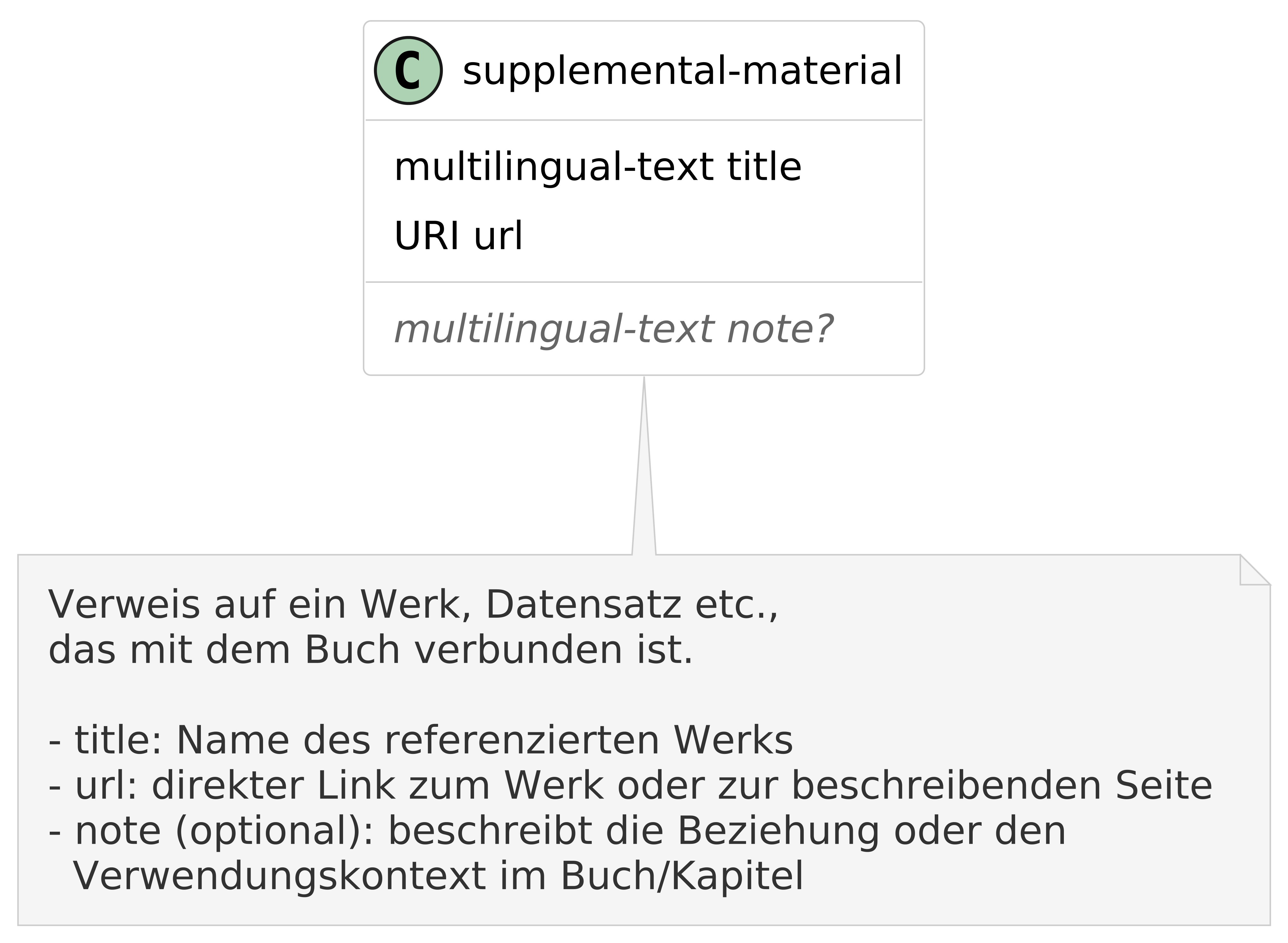

SupplementalMaterial

Supplemental material diagram

UsedTool

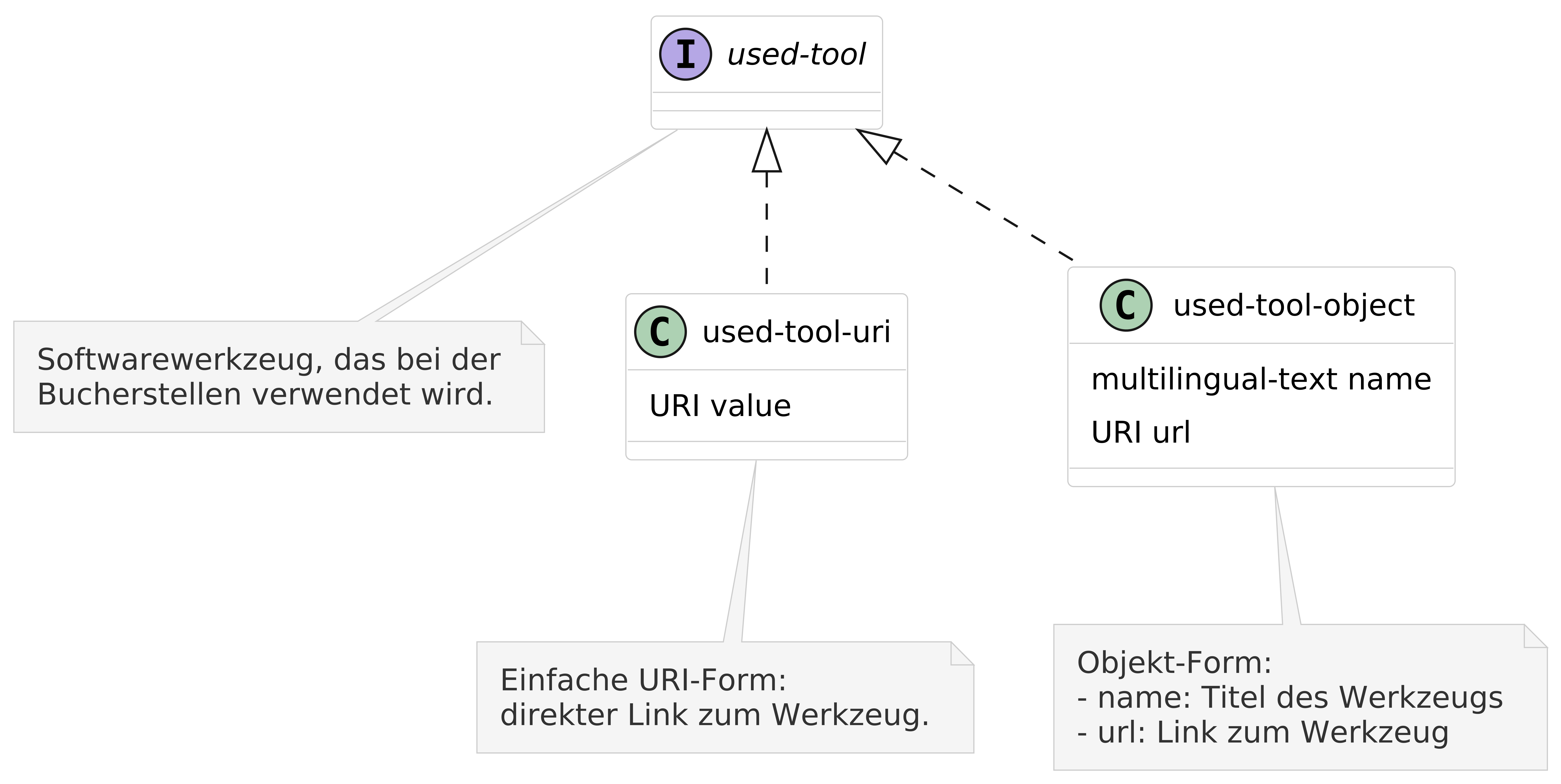

Used tool diagram
